How to Find Your AC Filter Size Without Guessing

An air conditioner can lose airflow for a simple reason: a replacement filter doesn't fit the slot. A filter that's too small leaves gaps, while one that's too thick can bow, jam, or restrict return airflow.

Finding the right AC filter size takes a few minutes, not a guess at the hardware store. In Southwest Florida, where systems run through long hot and humid stretches, that small check helps protect everyday comfort.

Start with the printed frame, then measure only when the label is missing or unclear.

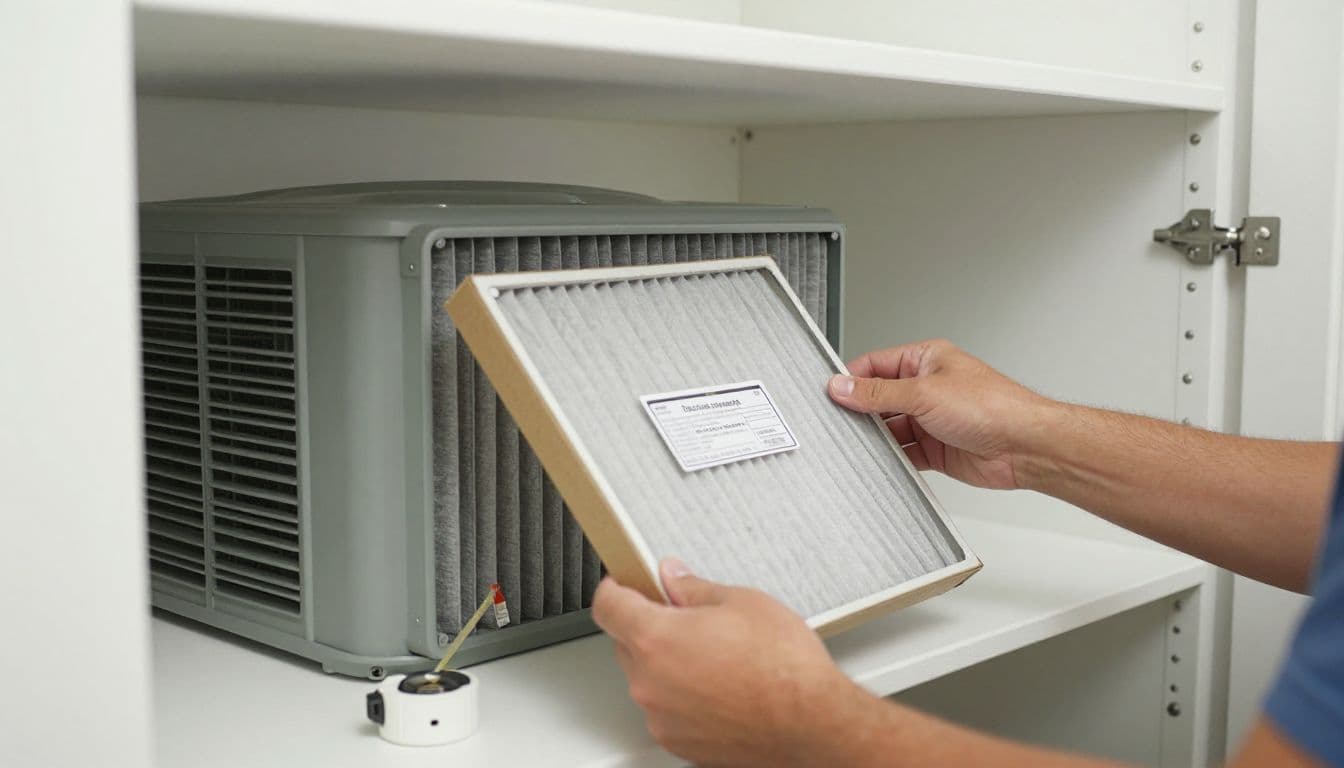

Find the AC Filter Size Printed on the Frame

Turn your thermostat off before removing the filter. Then look at the indoor air handler, usually in a garage, laundry room, closet, or utility area. Some homes use a filter behind a large return-air grille in a hallway, wall, or ceiling.

Take a photo before you remove the old filter. It helps you remember the size, the filter type, and the direction of the airflow arrow.

Read all three numbers on the frame

Most disposable filters show their dimensions on the cardboard frame. Look along the long edge, short edge, or side panel for a size such as 16 x 25 x 1 .

Those numbers list length, width, and thickness . The last number matters as much as the first two. A 16 x 25 x 1 filter will not fit a cabinet designed for a 16 x 25 x 4 filter.

A faded stamp can be hard to read, so use a flashlight or your phone camera. Don't order a replacement based only on an old package in the garage, since a previous owner may have bought the wrong size.

Check common filter locations

In many Fort Myers homes, the filter slides into a narrow slot beside or below the air handler. Condos and smaller homes may have the filter behind a return grille instead.

If you can't find a filter at the equipment, inspect the largest return grille inside the home. Before pulling it out, note which way the arrow points. That detail makes installation easier later.

Measure Your AC Filter Size When the Label Is Missing

If the label is gone or unreadable, measure the old filter before shopping. Pull it straight out of the slot so you don't crush the frame or bend the pleats.

Use a tape measure that shows inches clearly. Measure the filter itself, not the opening in the wall, grille, or air handler cabinet.

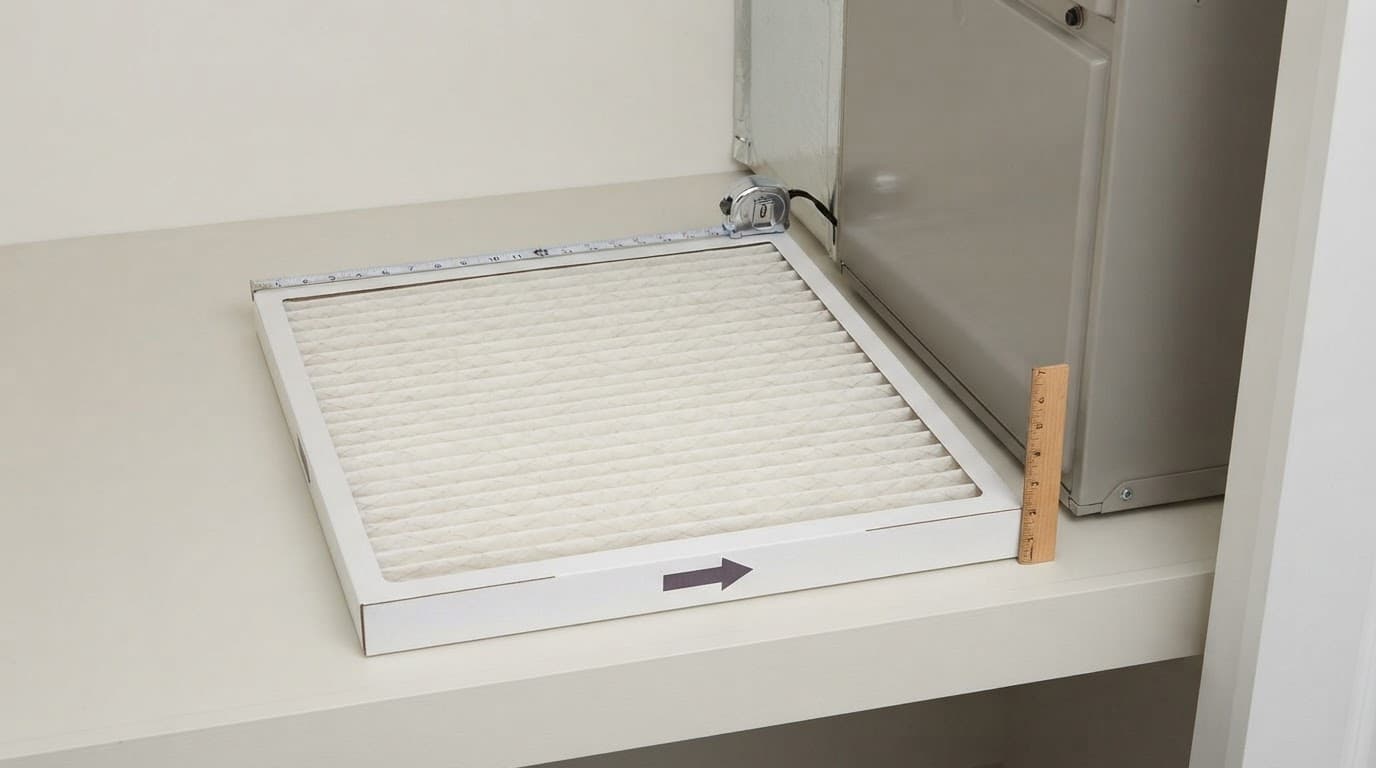

Measure length, width, and thickness

Lay the filter flat on a clean surface. Measure across the outside edge of the cardboard frame, first along the longer side and then along the shorter side.

Next, measure its thickness along the narrow edge, from one frame face to the other. Don't measure only the pleated material in the center. A filter can look thin but still have a deeper frame that won't fit in a one-inch slot.

Write the dimensions in order: length x width x thickness. A quick photo of the measuring tape beside the filter can also prevent mix-ups at the store.

Understand nominal versus actual dimensions

Filter packaging usually lists a nominal size , which is the rounded name used for retail sales. The actual physical size is often slightly smaller.

For example, a filter that measures about 15.5 x 24.5 x 0.75 inches is commonly sold as a 16 x 25 x 1 filter. Manufacturers make filters a little smaller so they can slide into their designated slots.

Replacement filters should match the labeled nominal size. If there is no label, compare your actual measurements with the product's published actual dimensions before buying. Thickness can vary by manufacturer, so don't assume every same-size filter fits the same way.

Match the Replacement Filter and Airflow Direction

A correct fit should slide in without force and sit flat in the rack. Keep the same nominal dimensions and thickness shown on the old filter label.

A high-efficiency filter with a higher MERV rating may also feel more restrictive than a basic filter. Check your system manual or ask a technician before switching to a denser filter, especially if your home already has weak airflow.

Point the airflow arrow toward the equipment

Every disposable filter has an airflow arrow on its frame. The arrow must point toward the furnace or air handler, because that is where the return air travels next.

When the filter sits behind a return grille, point the arrow into the duct. When it slides into the air handler, point the arrow toward the blower compartment. Never point it toward the living space or outdoor condenser.

After installing the filter, close the access panel or grille securely. If the filter bows, drops out of place, or won't slide in, remove it and recheck the size.

Quick AC Filter Size Checklist Before You Buy

Before discarding the old filter, confirm these details:

• Turn off the thermostat and locate the filter at the air handler or return grille.
• Read and photograph the size printed on the cardboard frame.
• Measure the length, width, and thickness if the label is missing.
• Match the labeled nominal size when buying a replacement.
• Keep the same thickness as the old filter.
• Install it with the airflow arrow facing the furnace or air handler.

Check your filter monthly, especially during Southwest Florida's hottest months. For more guidance on timing, see how often to change an AC filter.

When a Filter Problem Needs an HVAC Professional

Call an HVAC professional if the filter slot is bent, the filter falls through the opening, or no standard size seems to fit. A missing cover, damaged return grille, or loose cabinet door can also pull unfiltered air into the system.

Weak airflow, warm rooms, ice on indoor equipment, unusual noises, or a system that keeps shutting off need more than a new filter. In that case, Fort Myers AC repair services can identify the source of the problem.

You can also Schedule an Estimate if you need help confirming the filter size or checking an airflow concern.

A Proper Fit Protects Everyday Comfort

The right filter begins with the frame label, not a guess. When that label is missing, measure all three dimensions and compare the actual size with the replacement's specifications.

A correct AC filter size and arrow direction support steady airflow through the system. That small routine can help your home stay more comfortable through Florida's long cooling season.
